MIO (Micaceous Iron Oxide) Coatings & Paints Manufacturers & Suppliers

MIO Coatings and Paints

Discover high-build micaceous iron oxide coatings delivering robust anti-corrosion barrier defense and UV stability for structural steel worldwide.

Micaceous Iron Oxide MIO Coatings and Paints

MIO is a distinct form of natural iron oxide structurally resembling mica due to its highly ordered, layered crystalline mineral configuration. As these specialised pigments are processed into microscopic particles, they reveal smooth, overlapping faces that behave like countless miniature mirrors within the dry film. Extensive field data demonstrates that high-build MIO coatings and paints produce exceptionally robust anti-corrosion barriers, making them a premier base ingredient for structural steel primers and protective coating configurations worldwide.

When applied to a metallic surface, the overlapping pigment flakes align perfectly parallel to the underlying substrate. This creates a dense, multi-layered interlocking shield that presents an almost completely impermeable path to moisture vapor, oxygen, chlorides, and aggressive industrial chemicals. Furthermore, these mineral flakes are exceptionally weather-stable and function as exceptionally strong UV absorbers, bouncing destructive solar radiation away from the surface to prevent polymer binder degradation, chalking, and premature cracking.

Raw structural steel is inherently unstable from a chemical standpoint, reacting rapidly with atmospheric moisture and environmental salts to generate destructive rust. Because fully oxidized iron is chemically stable and cannot corrode any further, it provides an unparalleled baseline for metal protection—and utilizing specialized Micaceous Iron Oxide compounds elevates this protective mechanism substantially.

What Are MIO Coatings and Paints?

MIO Coatings and paints are protective coating formulations containing Micaceous Iron Oxide pigments. The MIO particles have a layered structure that can align within the coating film during application and drying.

This overlapping arrangement provides a barrier effect that can help reduce the penetration of moisture, oxygen, salts, and other environmental contaminants. MIO coatings may be formulated as primers, intermediate coats, or, depending on the product, protective finish coats.

The performance of an MIO coating depends on several factors, including resin chemistry, MIO pigment quality and content, film thickness, surface preparation, application method, curing, and the environment in which the coating will operate.

How Does MIO Coating Protect Steel?

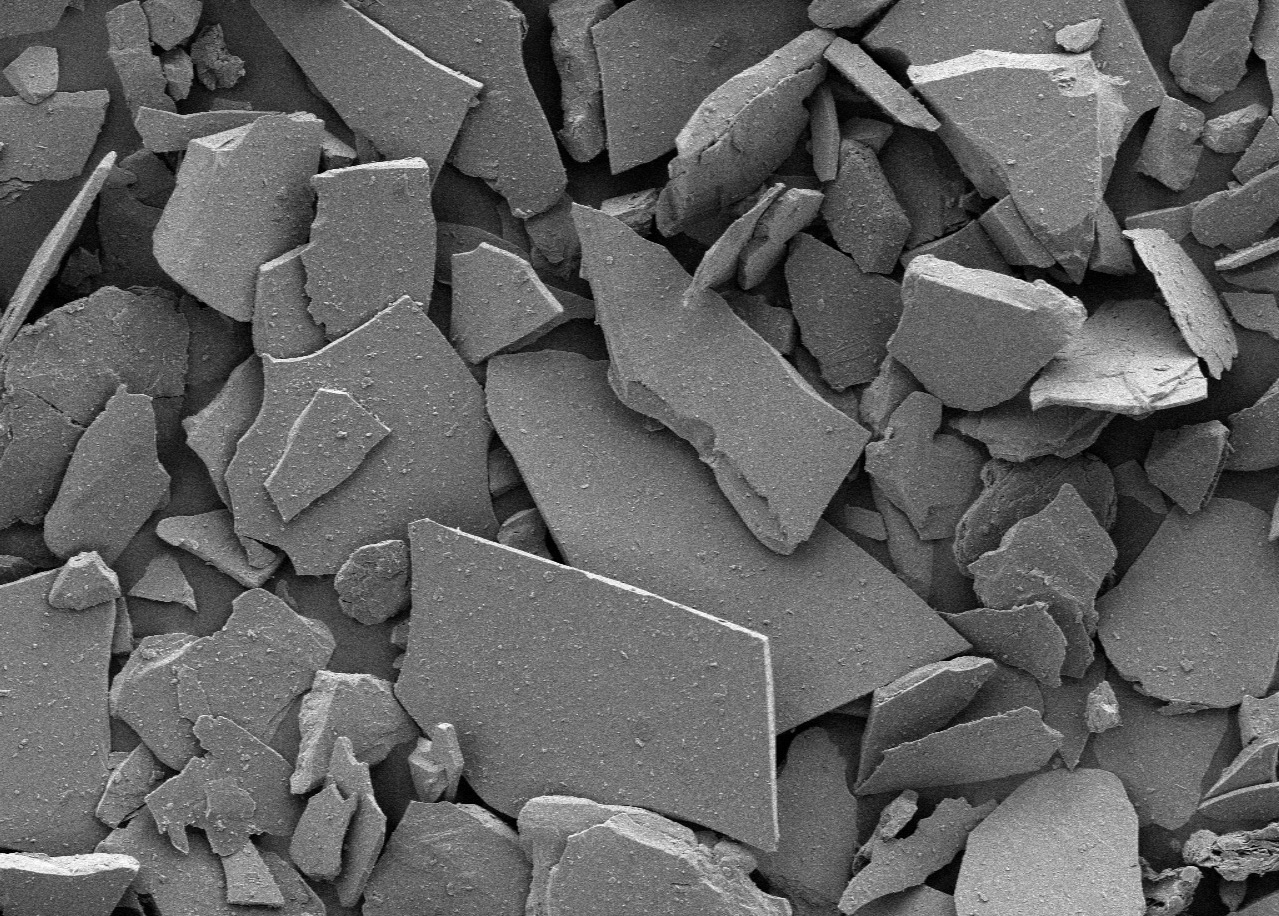

The key feature of Micaceous Iron Oxide is its lamellar particle structure. Instead of creating a simple straight path through the coating, overlapping MIO flakes can create a more tortuous barrier.

This structure can help:

Reduce moisture penetration
Limit the movement of oxygen toward the substrate
Improve barrier protection
Reduce exposure to atmospheric contaminants
Support corrosion-control coating systems
Improve resistance to UV-related degradation in suitable formulations
Increase the toughness and durability of the coating film

The actual level of protection depends on the complete coating system and application conditions rather than the MIO pigment alone.

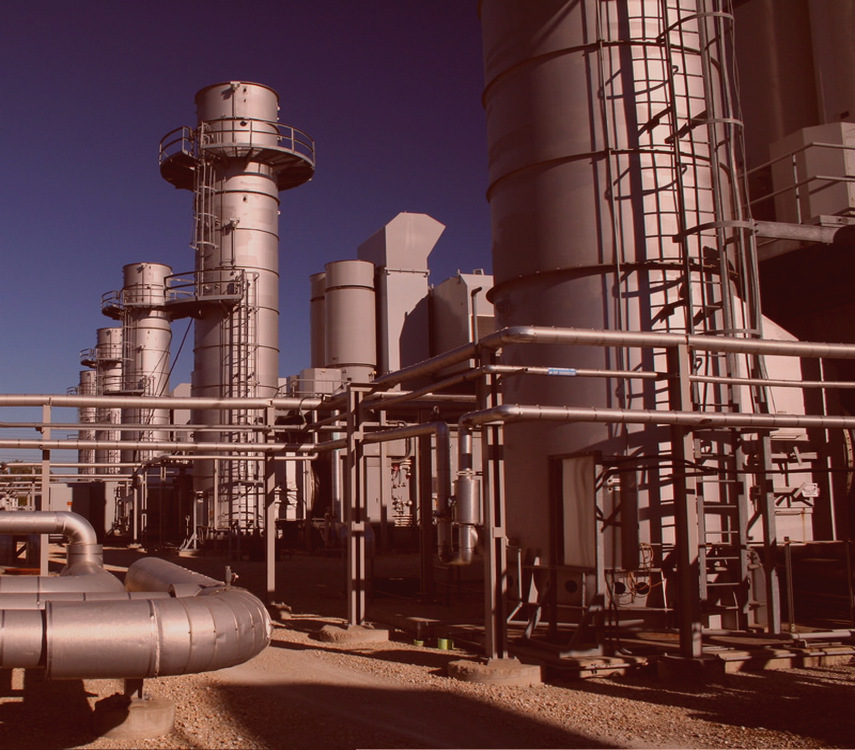

MIO Coatings and paints with a heavy-duty epoxy MIO finish on structural elements

Key Benefits of MIO Coatings and Paints

Layered lamellar shield technology delivering industry-leading defense against harsh industrial and coastal atmospheres.

Excellent Barrier Protection

The overlapping MIO particles can form a dense barrier within the coating film. This makes MIO particularly useful in protective systems where limiting moisture and contaminant penetration is important.

Corrosion Protection

MIO Coatings and paints and coatings are widely used as protective primers or intermediate layers in systems designed to protect structural steel from atmospheric corrosion. High-build epoxy MIO products, for example, are used as intermediate coats in industrial coating systems.

Moisture Resistance

Industrial steel structures can remain exposed to humidity, rainfall, condensation, and water splash. The lamellar structure of MIO pigments helps create a barrier that can reduce the movement of moisture through the coating.

UV and Weather Resistance

MIO particles can help reflect or block ultraviolet radiation within suitable coating formulations. This can help reduce degradation of the coating binder when exposed to sunlight and weather.

Mechanical Durability

MIO Coatings and paints and coating formulations can provide a hard and durable film suitable for demanding industrial environments. Performance varies according to the resin, formulation, thickness, and curing conditions.

Applications of MIO Coatings

MIO coatings can be used across a wide range of industrial and infrastructure applications.

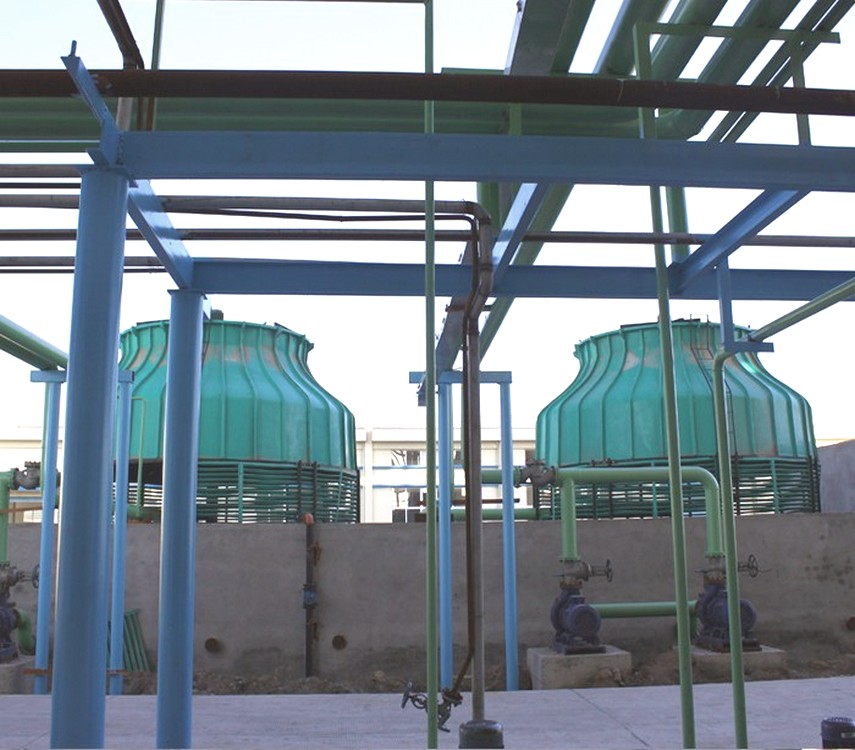

Structural Steel

Steel frameworks, support structures, columns, beams, platforms, and other fabricated steel components can require protective coating systems to reduce atmospheric corrosion.

Bridges and Infrastructure

Large steel infrastructure is exposed to rain, humidity, pollution, and temperature variations. MIO-based coating systems can be incorporated into protective paint specifications for suitable steel structures. MIO coatings have been used in protective systems for major steel infrastructure projects.

Tanks and Pipelines

Storage tanks, process equipment, and pipelines may operate in environments where moisture, chemicals, salts, and atmospheric contaminants are present. An MIO Coatings and paints intermediate coating can form part of a multi-layer corrosion-protection system.

Industrial Plants

Chemical plants, manufacturing facilities, fertilizer plants, power-generation facilities, and other industrial sites contain numerous steel structures that require protection against environmental exposure.

Marine and Coastal Structures

High humidity and salt-laden atmospheres can accelerate corrosion. MIO coatings are used in suitable protective systems for marine and coastal environments where strong barrier protection is required.

Why Choose Protexion for MIO Coatings and Paints?

Selecting an MIO coating system requires consideration of the steel substrate, exposure environment, required film thickness, compatible primer and topcoat, and expected service conditions. Protexion provides MIO coating solutions for suitable industrial and infrastructure applications where corrosion and environmental exposure are important considerations.

Choose MIO Coatings and Paints for Effective Steel Protection

MIO Coatings and paints provide an effective technology for incorporating Micaceous Iron Oxide into protective coating systems for steel and other suitable metal surfaces. Their lamellar pigment structure can create a strong barrier against moisture, oxygen, salts, UV exposure, and other environmental factors.

From structural steel and bridges to tanks, pipelines, industrial plants, and marine structures, MIO coatings can form an important layer within a properly designed corrosion-protection system. For dependable results, the coating should be selected according to the environment, substrate, required film thickness, compatible primer and topcoat, and application conditions.

Proper surface preparation, professional application, adequate curing, and regular inspection remain essential for achieving the intended performance and extending the service life of protected assets.
